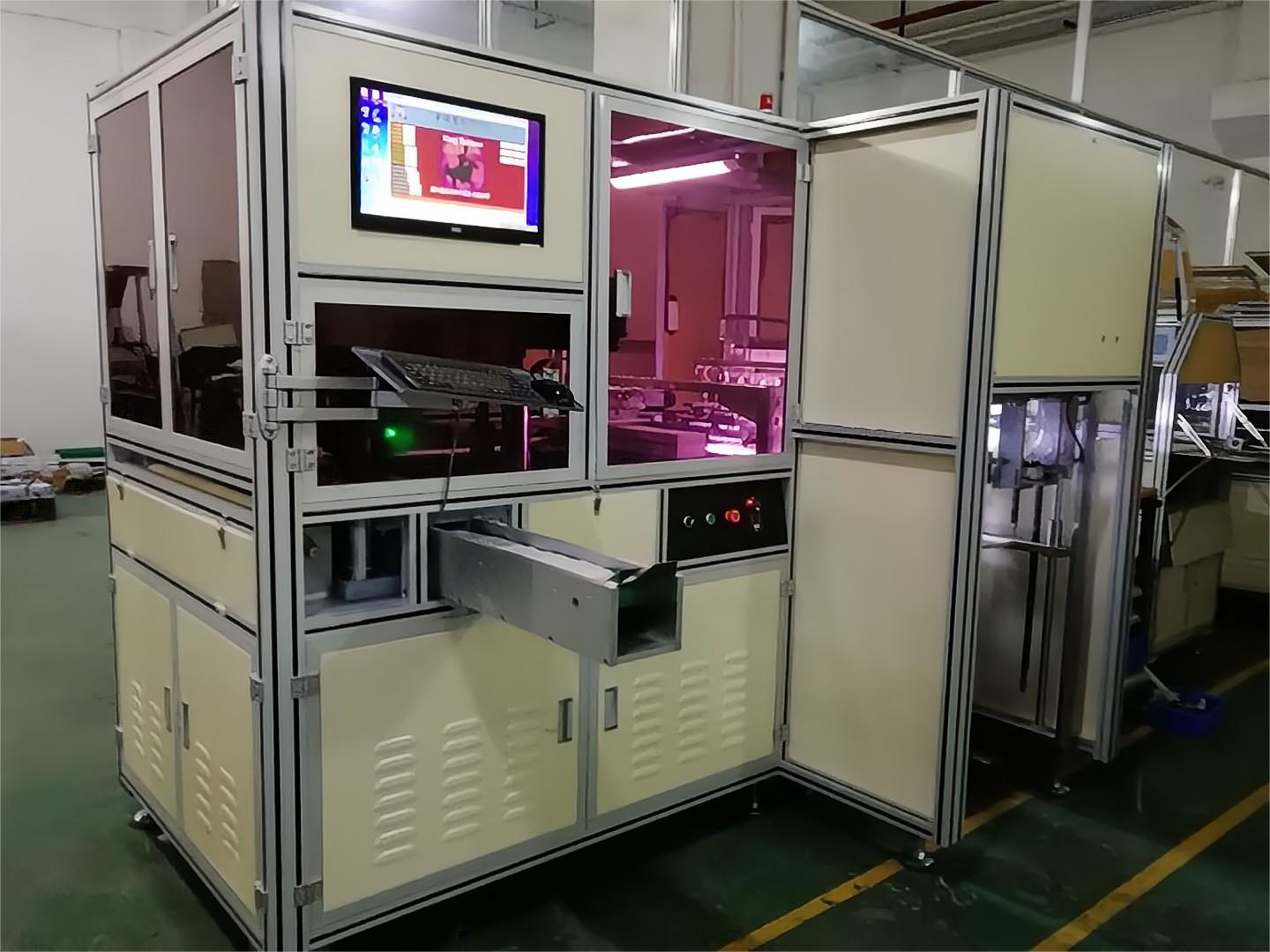

Auto Big Sheet Punching Machine

Product Category：Business Card / Tag / RFID Series

Specifications：

Power：10.0KW

Power Source：AC380V/50Hz

Air Pressure：6Kg/cm²（No water）

Punching Accuracy：±0.1mm.

Capacity：900~1100 sheets/hour

Weight：1500Kg

Material：PVC, ABS, PET or Mixed material

Material Size：Length range：400mm -480mm， width range：282mm-452mm

Dimension：（L）2200mm X (W)2600mm X(H)1800mm

Applying Area:

This equipment is used for punching ISO standard cards, business cards, or NON-ISO standard cards. The speed is fast. Applying high accurate cameras to do the position and the industrial PC to do the control. The sorting function could save the manpower cost and is very effective.

Features：

1.Feeding unit:Auto feeding, applying the lift chain system, it could ensure every sheet feeding even and stably.

2. Position Unit: applying high resolution camera to make position, the punching accuracy could be ±0.1mm.

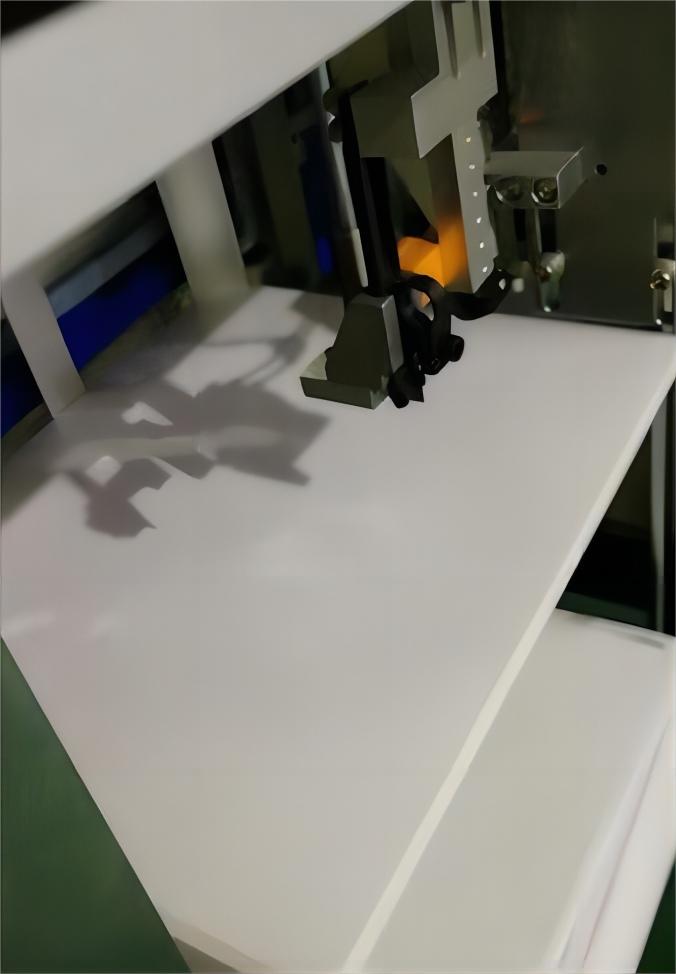

3.Transfer Unit: applying the machine hand to transfer the material stably and accurately.

4.Punching Unit: applying the high resolution camera to make the postion and the industrial PC to control the punching. It could recongnize the punching area accurately also punch well with lamination deform cards to avoid waste.

5.Applying area: it is used for punching ISO standard cards, business cards, or NON-ISO standard cards.

6.Applying the camera position system and industrial PC to make the operation easily and fast.
