Auto Collation Machine/Smart Card /IOT Equipment

Auto Collation Machine

Product Model：WD-QMA-2119

Product Category：Smart Card Equipment

Specifications：

Features:

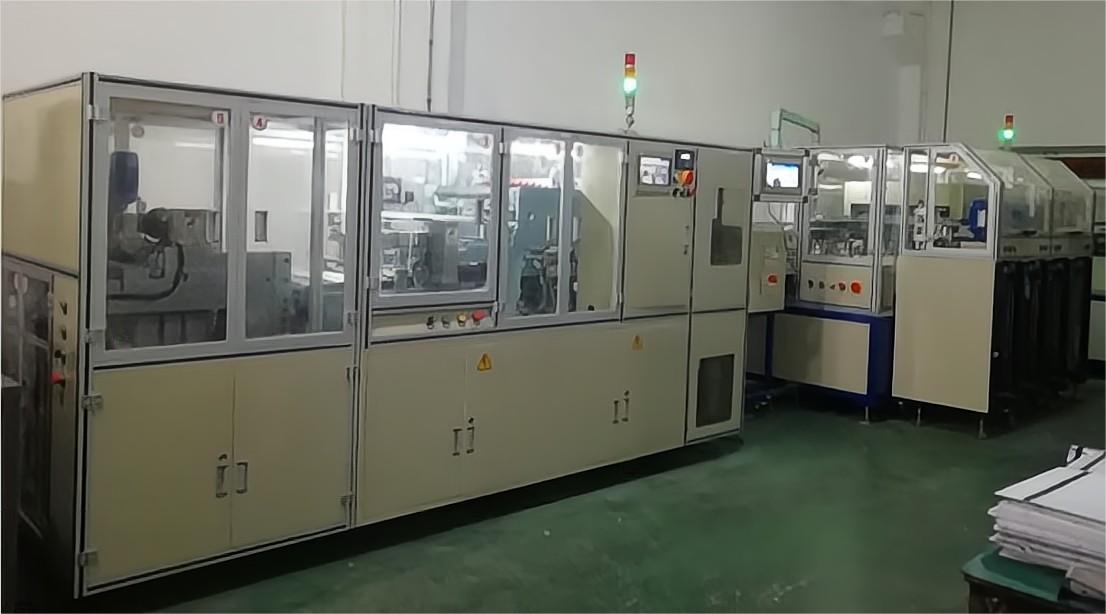

Auto Collation Machine is used for collating the card sheets, it also has the normal overlay / magstripe overlay functions. This machine reaches the ISO standard. It  helps the banking card (Visa/Master/Union Pay), Social Insurance card to realize the anti-counterfeit and magstripes functions. The machine could reduce the NG rate and improve the capacity. Using the PLC and HMI control,  One operator is OK for the machne. The machine capacity could reach 900 sheets/hour and save 15 manpower cost.

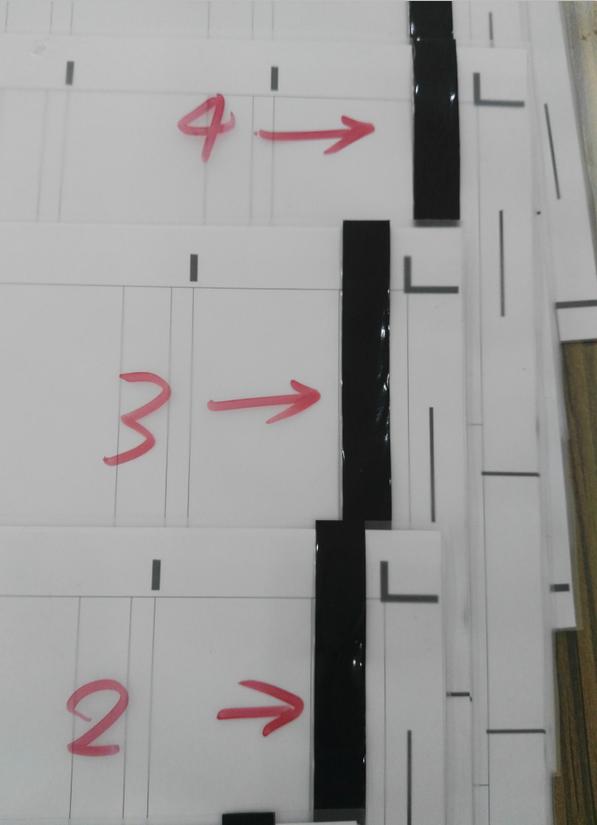

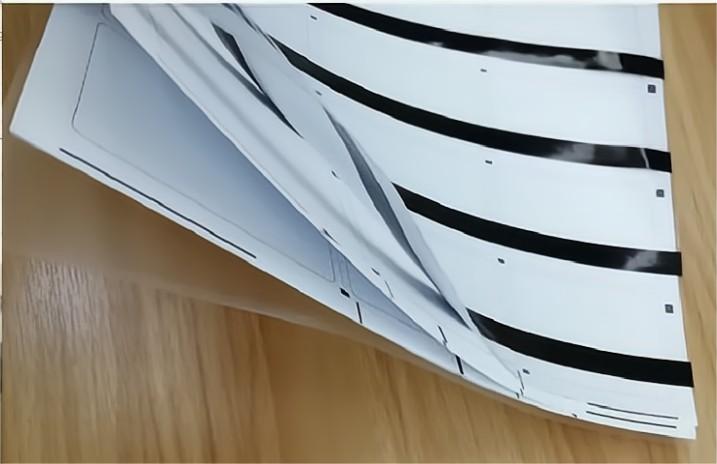

This machine is used for collating the 3 sheets (top sheet, inlay, bottom sheet), it could add more sheet if required. The collating accuracy is 0.1mm.

This machine applies the high accurate sensors and step system, could  correct the sheets' horizontal / vertical positions. It has the servo system, accurate guide screw, ultrasonic collating design, glue cleaning staion, 500mm roll overlay diameter design, separable power control, auto lift feeding, applying the measure rulers,  overlay guiding system and tension control design, warning funtions,  thermal detects and so on. The advanced design makes the machine on the lead in card industry.
