High Speed Auto Serial Output Punching Machine

High Speed Auto Serial Output Punching Machine,This machine is used for punching ISO standard cards or NON-ISO standard cards. It applies the vision system to make the position and the sorting function. It could save manpower cost.

Product Model：WD-CCA-4367

Product Category：Smart Card Equipment

Features:

1. Feeding unit:Auto feeding, applying the lift chain system and sensor to check the materail. It could ensure every sheet feeding even and stably.

  2. Position Unit: applying high resolutions cameras to make the position very accurately.

 3.Transfer unit: Applying the high accuracy guide screw to make the materail running stably and accurately.

 4. Punching unit：Using the PLC to control the punching system to make the punching stably and low noise. The punching accuracy reaches ±0.1mm. And it also could work well with lamination deform card to reduce the NG rate.

5. Sorting Unit: the machine could place the same position cards into the same output box, it could save the manpower to sort the cards.

6. Output Unit: the output boxes could be designed from 1 box to 64 boxes depends on the client's request. It could solve the sorting problem with mixed cards.

7.Control Unit: applying the touch screen to control, it is easy and fast to operate.

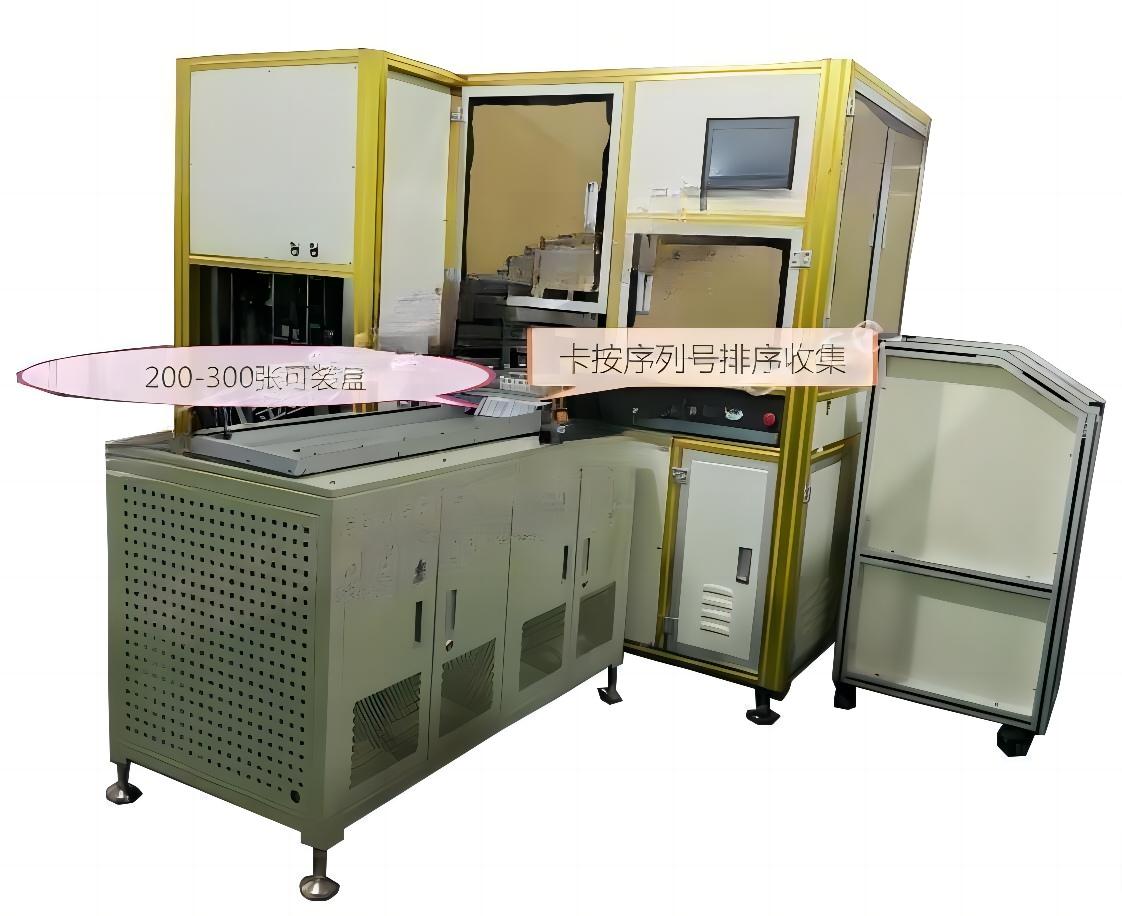

 8. The machine could collect cards by serial numbers, 200 to 300 cards could put into one box.

Applying Area:

This machine is used for punching ISO standard cards or NON-ISO standard cards. It applies the vision system to make the position and the sorting function. It could save manpower cost.
