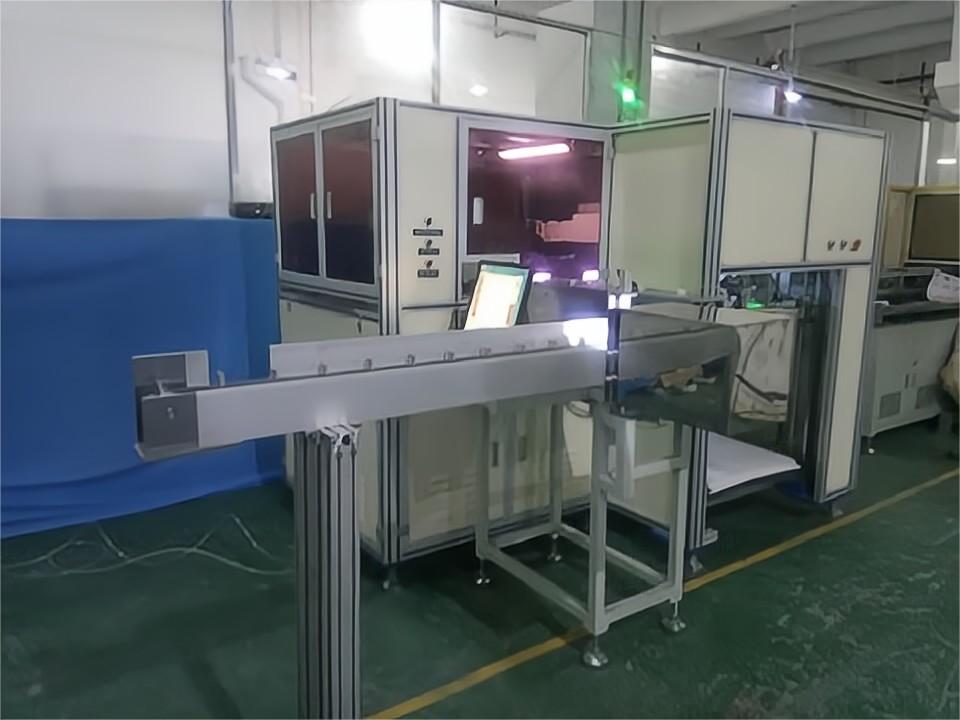

Auto Poker Card Punching Machine

Product Model：WD-TTA-2019

Product Category：Poker Card Equipment

Specifications：

Power：9KW

Power Source：AC380V/50Hz

Air Pressure：6Kg/cm²（No water）

Punching accuracy：±0.1mm

Material：0.2mm~0.4mm paper sheet / PVC sheet.（ Please specify the max and min material sizes, also the thickness）

Total weight：1800Kg

Dimension：（L）3700mm X(W)100mm X(H)1800mm

Features:

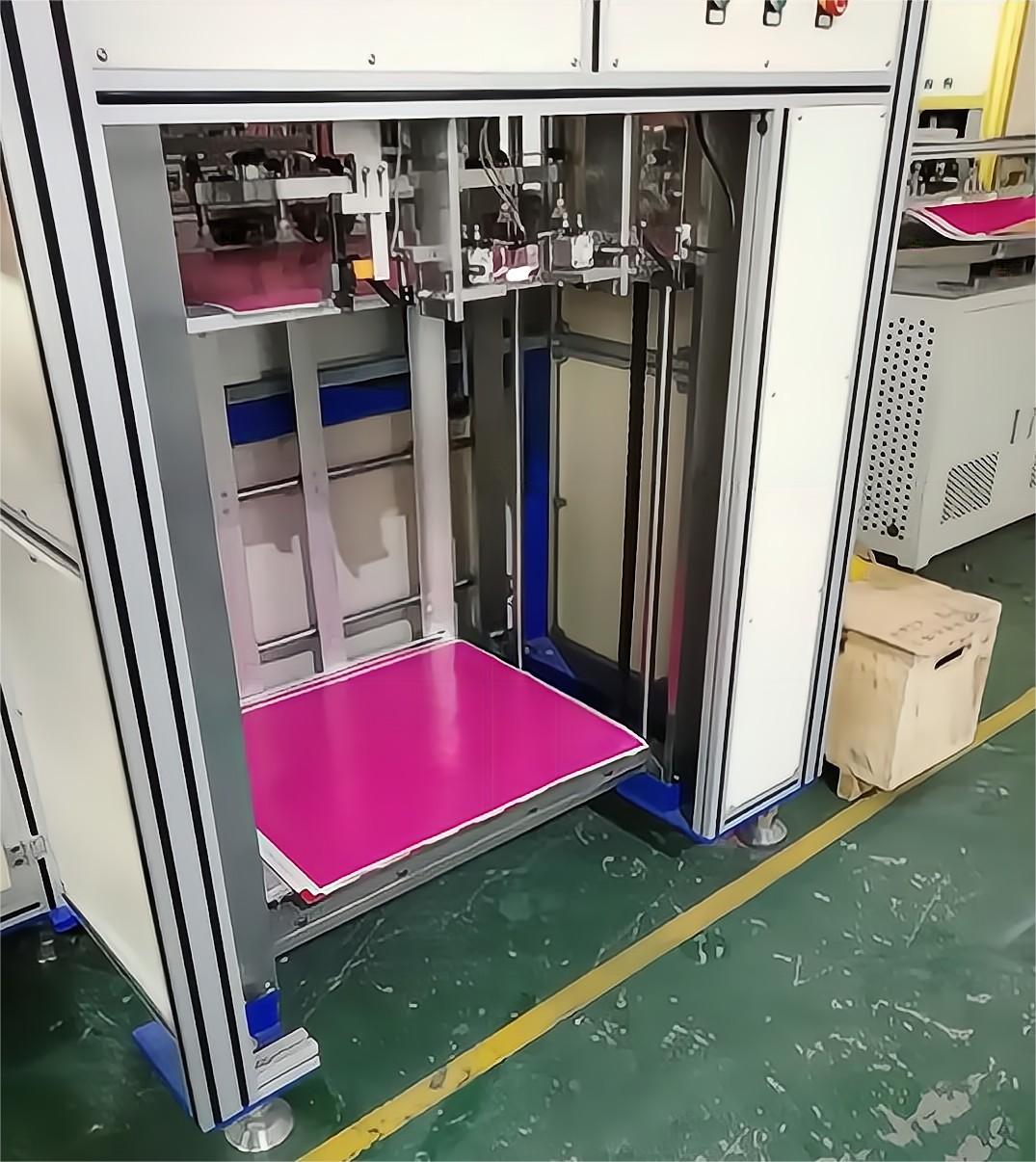

Feeding unit: auto feeding, applying the chain to control the material up and down.Applying the sensors checking to make sure the accuracy.

Transfer Unit:  applying the high accurate guide screw and servo system to make the transfer even and stably. The punching accuracy is ±0.1mm.

Punching Unit: applying the servo punching system to make sure the punching stably and low noise. The special design could make the punching speed adjustably to adapt to different thickness. The punching unit could be also very easy to make changeover which improves the productivity.

Waste Out Unit: applying roll out design to separate the products and waste frame. It could save manpower and improve the productivity.

Output Unit: it could make the products sorting by the serial. The machine could be alarm and stop when it occurs abnormal status.

Control Unit: applying the industrial PC and camera checking, it is easy to operate.

Applying Area：

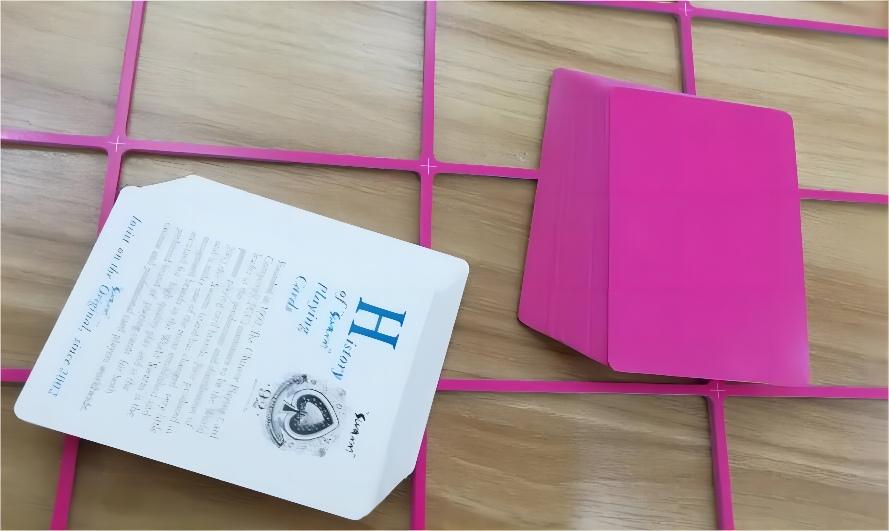

This equipment is used for punching the paper card (aslo could be used for PVC cards). Applying 2 cameras (or high accurate sensors)to do the position, it is very accurate. The servo punching ensures low noise and environmental. It is with chain lift feeding and advanced sorting output system. It could work for Poker Card, Clothes Tags,high class cards. The machine is high accurate and effective.
